Food Shop Bottle Clamp Screw Capping Sealing Machine for Duckbill Cap Sealing Needs

Name: Food Shop Bottle Clamp Screw Capping Sealing Machine for Duckbill Cap Sealing Needs
Brand: Guanhong
Price: 4 USD

Buy cheap Food Shop Bottle Clamp Screw Capping Sealing Machine for Duckbill Cap Sealing Needs product

Type : Capping Machine

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motor

Condition : New

Application : Food, Beverage, Commodity, Medical, Chemical

Driven Type : Pneumatic

Automatic Grade : Automatic

Voltage : 220V 50-60HZ, 220V 50Hz

Packaging Type : Wooden case

Packaging Material : Wood

Place of Origin : Guangdong, China

Brand Name : Guanhong

Weight : 525 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Capping type : servo tracking type

Suitable specifications : according to the bottle sample provided by the customer

Capping range : 10~55mm

Capping speed : 10~35 bottles/minute

Program control : PLC+touch screen

Material of contact parts : 304# stainless steel

Machine power : 1.5-2.5kw

Air pressure : 06~0.8MPa

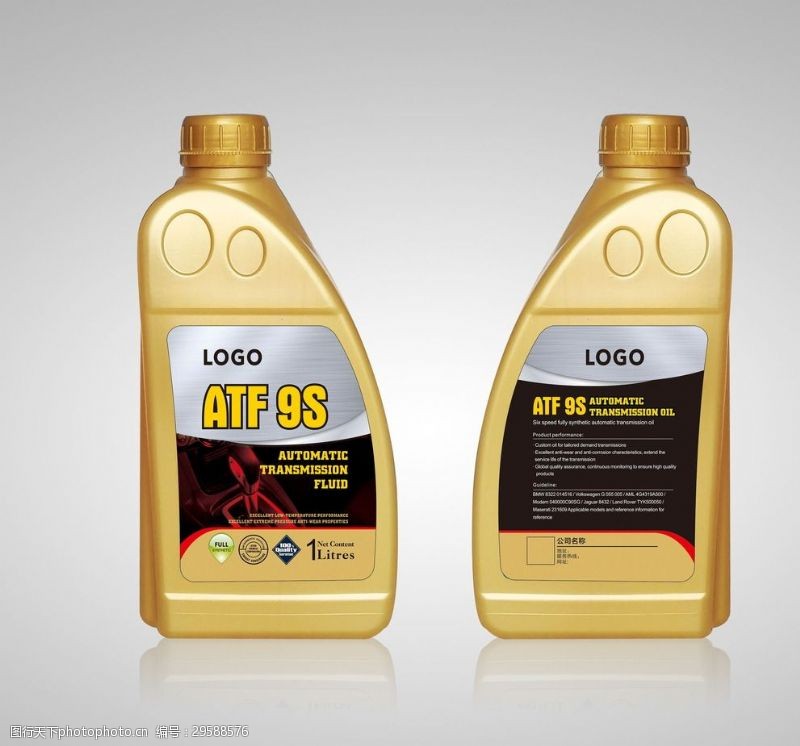

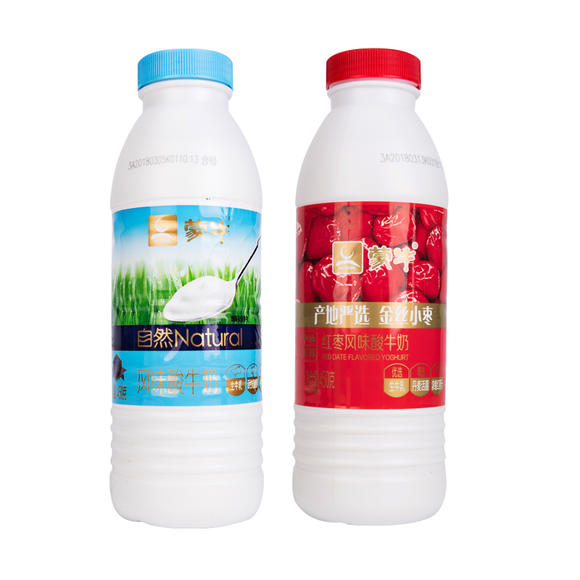

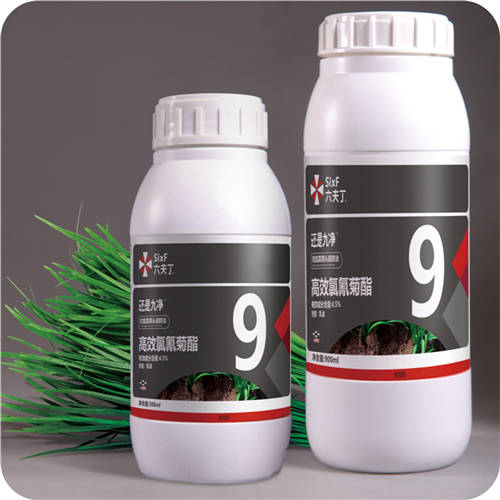

Bottle cap type : plastic/ metal round cap, pump head cap, duckbill cap, etc.

Marketing Type : Ordinary Product

Packaging Details : wooden packing

Port : Guangzhou

Supply Ability : 20 Unit/Units per Month

Price : $4,950.00/sets >=1 sets

MOQ : 1 set

Contact Now

Recommend Products

Product Overview

Good Price Bottle Clamp Screw Capping Sealing Machine

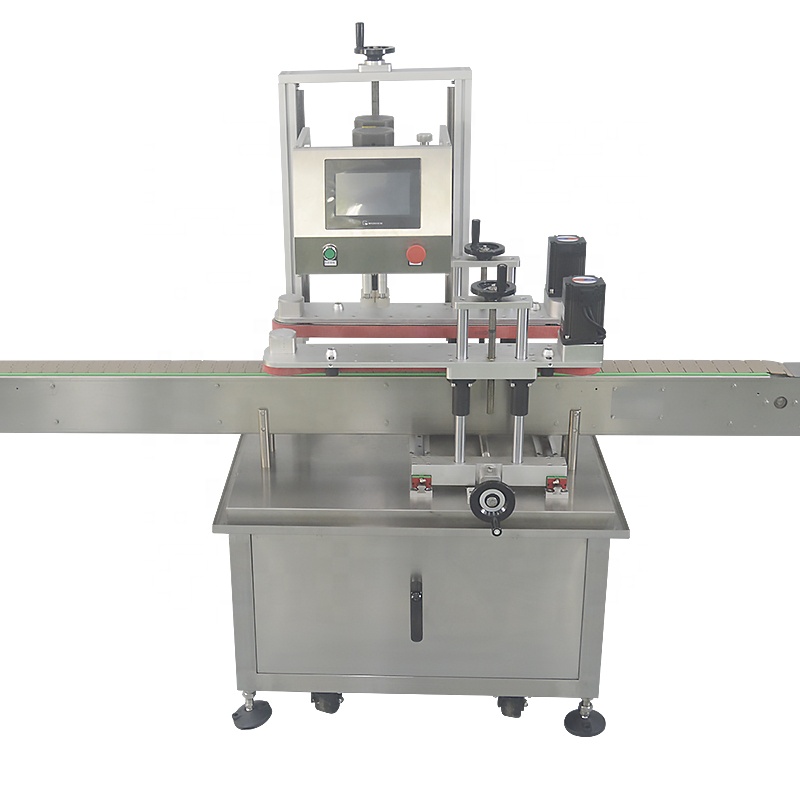

Equipment overview:

This device uses servo torque screw cap, the torque of the cap can be adjusted. The machine integrates automatic cap sorting, cap input, capping. No bottle to capping, cap rejection automatic alarm function, high degree of automation. Automatic screw capping
for plastic/ metal round cap, pump caps, and duckbill caps. Applicable to medicine, food, cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in
leakproof, anti-theft.

Food Shop Bottle Clamp Screw Capping Sealing Machine for Duckbill Cap Sealing Needs

Technical Parameters:

1.Capping method: servo torque screw cap, screw cap size can be adjusted
2.Capping range: Φ10~φ55mm (can be customized according to requirements)
3.Bottle height: 50~300mm (can be customized according to requirements)
4.Capping speed: 10~35 bottles/minute
5.Voltage: 220V 50Hz
6.Power: 1.5KW
7.Air pressure: 06~0.8MPa
8.Bottle cap type: plastic/ metal round cap, pump head cap, duckbill cap, etc.

Product Paramenters

NO.	Item	Data
1	Capping range	Φ10~φ55mm (can be customized according to requirements)
2	Capping height	Φ10~φ55mm (can be customized according to requirements)
3	Screw capping form	servo torque screw cap, screw cap size can be adjusted
4	Capping head	1 head
5	Speed	10~35 bottles/minute (Increasing capping heads can increase the speed)
6	Machine power	1.5KW
7	Voltage	AC220 50HZ
8	Pressure	0.6-0.8Mpa
9	Program control	PLC+ touch screen

Company Profile

Packaging & Delivery

Customer Photos

FAQ

Q: Is your company a factory?
A: Yes, we are factory that located in Guangzhou city, China.
2: Q: Do you have certificates ?
A: Yes. CE, ISO 9001, GMP quality, etc, if you have other requirements we can also make it.
3: Q: What are the payment methods?
A: T/T, L/C at sight, Western Union, etc
For regular order, 50% as advance payment, 50% as balance before delivery.
4: Q: What's the lead time ?
A: Usually around 15 to 30 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM. We can customize the production line based on your special requirements
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have express account, you could pay freight charge directly to our company account before shipping.
7: Q: Deliver goods by air or by sea ?
A: Both are okay, which depends on you, usually shipping by sea particularly for big order.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, please feel free
to contact us.
