Chuck Type Reagent Tube Liquid Filling Capping Labeling Machine with 800 KG Capacity

Condition : New

Type : Filling Machine

Machinery Capacity : 3000BPH

Applicable Industries : Manufacturing Plant, Other, Medical

Showroom Location : None

Application : Medical

Packaging Type : Tube

Packaging Material : Plastic

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220/380V 50-60HZ

Place of Origin : Guangdong, China

Brand Name : GH

Dimension(L*W*H) : 3000*2000*1800mm

Weight : 800 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Filling Material : Liquid

Filling Accuracy : ±5%

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC

After-sales Service Provided : Online support

Number of filling heads : 3

Filling form : peristaltic pump + clamp flowmeter filling (quantitative flow meter)

Filling capacity : about 1.6ml

Production speed : about 3000 bottles/hour

Material : The frame adopts 304# stainless steel

The number of capping heads : 3

Cap sorting form : vibration cap sorter

Cap height detection : electric eye detection (automatic elimination)

Marketing Type : Hot Product 2020

Packaging Details : wooden packing

Port : Guangzhou HuanPu

Supply Ability : 20 Set/Sets per Month

Price : $50,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

Recommend Products

Product Overview

Chuck Type Reagent Tube Liquid Filling Capping Labeling Machine with 800 KG Capacity

Product Paramenters

Chuck type filling, capping and labeling all in one machine

Technical parameters:

1, Suitable bottle type: according to customer sample (1 bottle)
2, Bottle feeding form: vibration bottle sorter automatic bottle feeding
3, Number of filling: 3
4, Filling form: peristaltic pump + clamp flowmeter filling (quantitative flow meter)
5, Filling capacity: about 1.6ml
6, Filling accuracy: ±5%
7, Cap sorting form: vibration cap sorter
8, Cap feeding: automatic buckle cap and put cap
9, The number of caps: 3
10, Screw cap form: servo screw cap
11, Cap height detection: electric eye detection (automatic elimination)
12, Production speed: about 3000 bottles/hour
13, Material: The frame adopts 304# stainless steel
14, Filling nozzle and material tank contact liquid parts material: 304# stainless steel, silicone tube, teflon tube
15, The whole machine power: about 5KW
16, Program control: PLC+ touch screen
17, Air pressure: 0.6-0.8mpa
18, Power supply: AC220V/380V, 50/60Hz.

NO.	item	value
1	Suitable bottle type	according to customer sample (1 bottle)
2	Bottle feeding method	vibration bottle sorter automatic bottle feeding
3	Number of filling heads	3
4	Filling form	peristaltic pump + clamp flowmeter filling (quantitative flow meter)
5	Filling capacity	about 1.6ml
6	Cap feeding	automatic buckle cap and put cap
7	Filling accuracy	±5%
8	Cap sorting form	vibration cap sorter
9	The number of caps	3
10	Screw cap form	servo screw cap
11	Cap height detection	electric eye detection (automatic elimination)
12	Production speed	about 3000 bottles/hour
13	Material	The frame adopts 304# stainless steel
14	Filling nozzle and material tank contact liquid parts material	304# stainless steel, silicone tube, Teflon tube
15	The whole machine power	about 5KW
16	Power supply	AC220V/380V, 50/60Hz.
17	Program control	PLC+ touch screen
18	Air pressure	0.6-0.8mpa

Packaging & Delivery

Company Profile

Customer Photos

FAQ

1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.

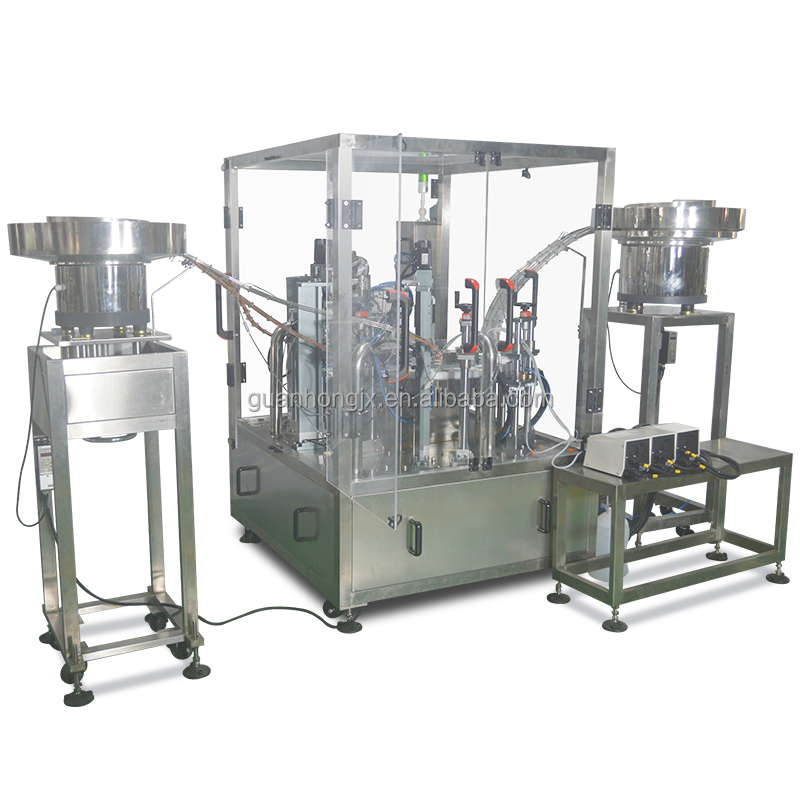

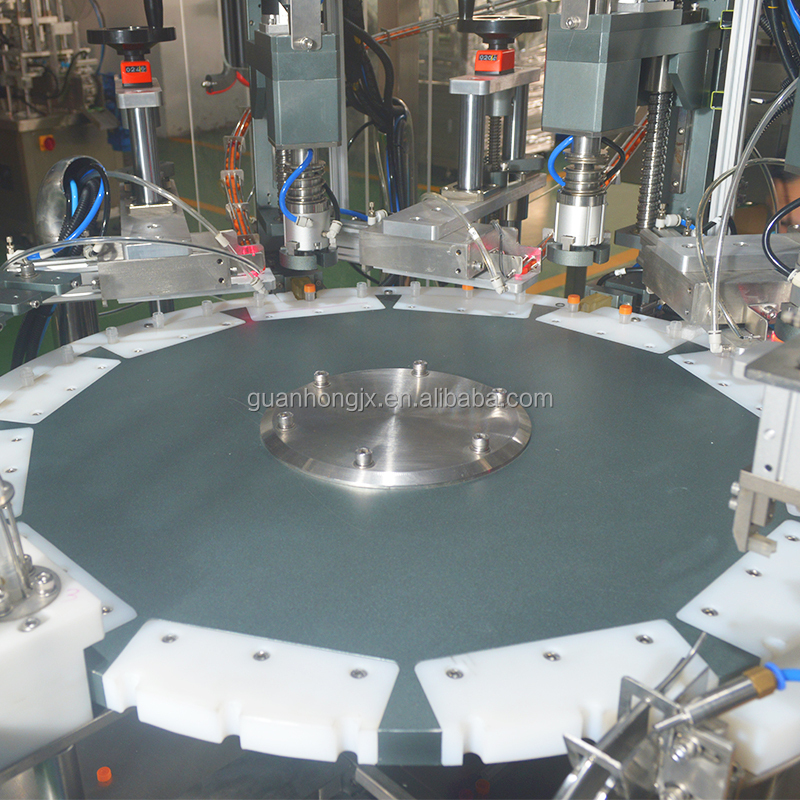

Chuck Type Reagent Tube Liquid Filling Capping Labeling Machine with 800 KG Capacity Images
