Automatic servo piston 16 heads hand sanitizer filling machine production line
The production line combines 3 machines total:
1.Filling machine
2. Capping machine
3. Labeling machine.
1.Automatic servo piston 16 heads hand sanitizer filling machine.
| Filling heads | 16 heads (can be customized) |
| Filling volume | 100-5000ml adjustable (can be customized) |
| Filling type | piston filling |
| Filling speed | 6000-8000 bottles/hour(base on 16 heads) |
| Filling accuracy | ±1% error |
| Conveyor speed | 300-900meter/hour |
| Power | 500W / 220V AC single phase |
| Program control | PLC + touch screen |
| Control panel | PLC+touch screen |
| Machine material | Stainless steel 304 |

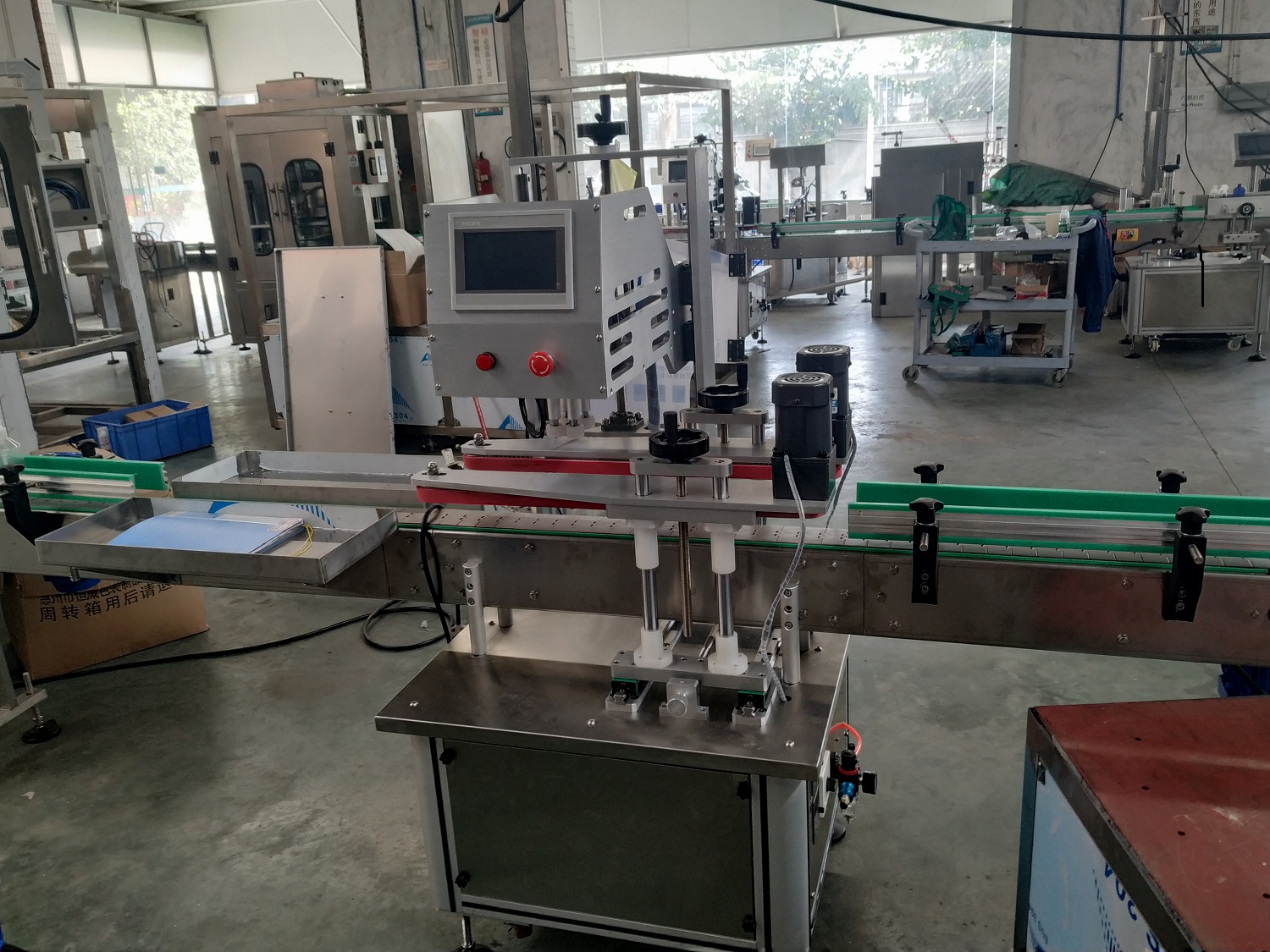

2.Automatic capping machine
Equipment Overview:
The machine integrates automatic sorting ,arranging, upper cover, automatic screwing cap.It has no bottle to send cover, lack of cover automatic alarm function, high degree of automation. Automatic capping for plastic/ metal round cap, pump caps, and duckbill caps. Applicable to medicine, food, cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in leakproof, anti-theft.
Technical Parameters:
Capping range: Φ10~φ55mm (can be customized according to requirements)
Adapt to bottle height: 50~300mm (can be customized according to requirements)
Capping speed: 10~35 bottles/minute (Increasing the number of caps can increase the speed)
Rated voltage: 220V 50Hz
Power: 1.1KW
Air source: 06~0.8MPa
Bottle cap type: plastic, metal round cap, pump head cap, duckbill cap, etc.

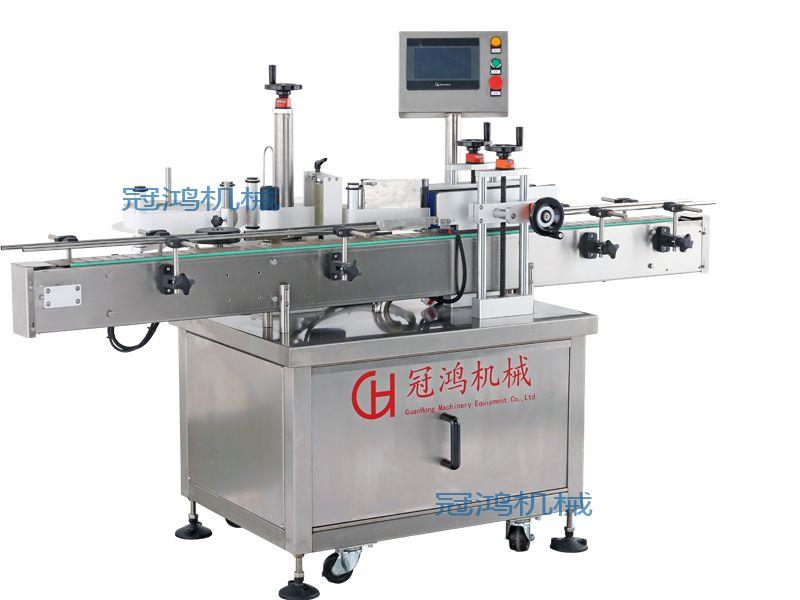

3. Automatic round bottle labeling machine:
Automatic self-adhesive vertical round bottle labeling machine, widely used in various specifications of circumferential surface labeling, taper round bottle labeling, such as cosmetics, food, medicine, daily chemicals, toys, hardware, plastics and other industries. For example, beverage bottles, wine bottles, sauce bottles, oil bottles, can achieve full-circumference/half-week labeling, double-label labeling on the front and back of the circumference, and the spacing of the front labels can be adjusted freely.
Technical Parameters:
Label specifications: length 15mm~290mm; width 15mm~150mm
Product specifications: Φ25mm~90mm;
Product height: 25~300mm
Marked outer diameter: Φ280mm;
Marking inner diameter: Φ76mm
Labeling speed: 10~100 bottles/min
Labeling accuracy: ±1mm
Air pressure: 0.6~0.8Mpa
Power: 850w (step), 1150w (servo)
Voltage: 220V 50Hz

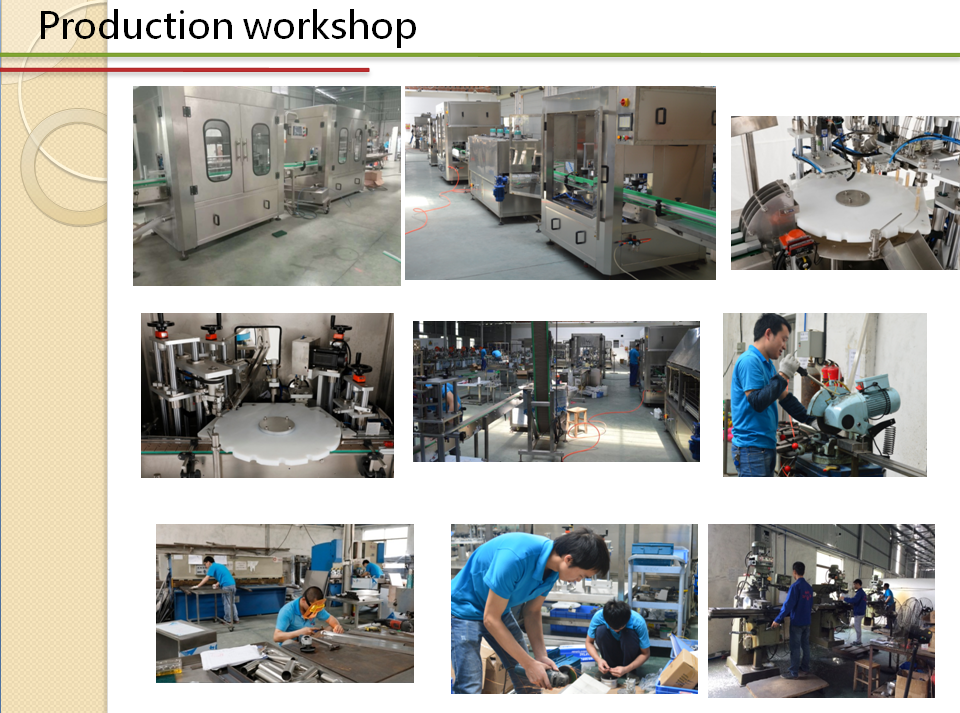

Our factory:
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 30% front payment ,70% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL.FEDEX,TNT,UPS account, samples would be sent under freight collected through your account.
If you don't have DHL,FEDEX,TNT,UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine ,you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
