Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct

Name: Automatic Double Heads Tracking Type Filling Machine Customized NonStandard Direct
Brand: Guanhong
Price: 16 USD

Buy cheap Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct product

Condition : New

Type : Filling Machine

Machinery Capacity : 2400BPH

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops

Showroom Location : None

Application : Beverage, Commodity, Chemical

Packaging Type : Bottles, Barrel, Other

Packaging Material : Plastic, Glass

Automatic Grade : Automatic

Driven Type : Pneumatic

Voltage : AC220V/380V 50/60Hz

Place of Origin : China

Brand Name : Guanhong

Dimension(L*W*H) : 2100*1400*2380mm

Weight : 750 KG

Warranty : 1 Year

Key Selling Points : Automatic

Filling Material : Water, Oil, liquid, Liquid

Filling Accuracy : ±1%

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC

Quantity of filling head : 2 heads

Filling capacity : 500-5000ml

Filling form : double head servo tracking type filling

Filling speed : about 40-50 bottles/min

Pressure : 0.6-0.8 MPa

Conveyor motor : 370W frequency control motor

Power : about 2kW /AC220V/380V 50/60Hz

Program control : Cotrust motion control system

Material : Material: The filling machine frame is 304# stainless steel

Marketing Type : Hot Product 2019

Packaging Details : wooden packing

Port : Guangzhou

Supply Ability : 20 Unit/Units per Month

Price : $16,800.00/sets >=1 sets

MOQ : 1 set

Contact Now

Recommend Products

Product Overview

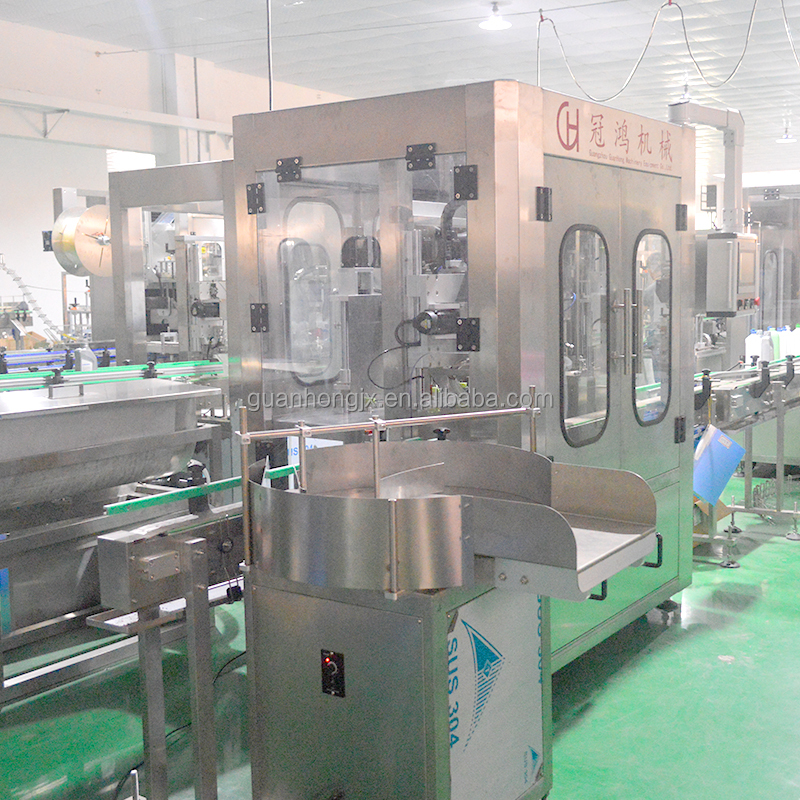

Double heads tracking type filling machine

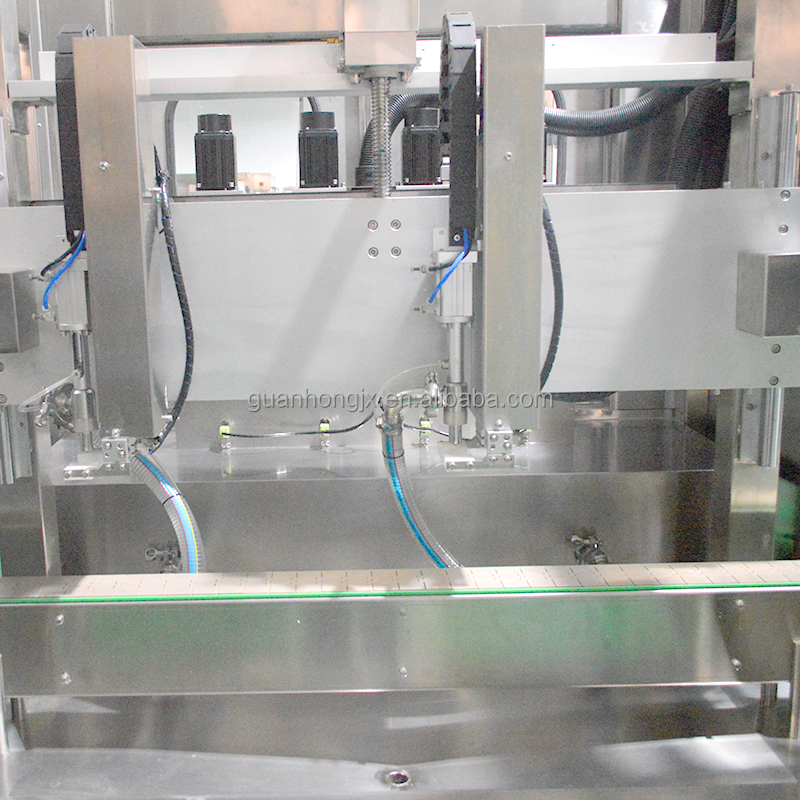

Tracking type high speed double heads filling machine consists of chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo piston system, electric lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc.This machine has the function of one-button quick changeover, which can be applied to the automatic filling equipment for bottles of different specifications.

Key selling point

1. Motion control system + networking

2. Intelligent adjusting machine

3. High speed filling

4. Dive into filling

5. Accurate capacity

6. Exquisite appearance

7. Less space occupied

8. One-click cleaning

9. One-click alignment position

Specification

item	value
Type	Filling Machine
Automatic Grade	Automatic
Driven Type	Electric
Voltage	220V 50-60HZ
Place of Origin	China
Warranty	1 Year
Service	Online support, Video technical support
Marketing Type	Hot Product 2021
Filling nozzles	2 heads
Filling form	Servo piston type
Filling capacity	2L
Filling accurary	±1%
Program control	PLC+touch screen
Air pressure	0.6-0.8Mpa
Conveyor belt	82mm wide POM chain belt, speed 0-15m/min
Conveyor motor	750W frequency control motor
Filling speed	About 40-50 bottles/min
Fuction	with feeding pump, bunker, automatic feeding, without descending

Company Profile

Packaging & Delivery

Customer Photos

FAQ

1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
